A "ONE STOP MACHINE SHOP" that specializes in roller fabrication, machining and emergency work.

Equipment List

Vertical Numerical Control/Turning
Vertical Lathe-King 144" Chuck x 122" under rail and 60" Ram Travel, one ram with Live Tooling
Vertical Lathe-Cincinnati 84" Chuck x 80" under rail and 45" Ram Travel

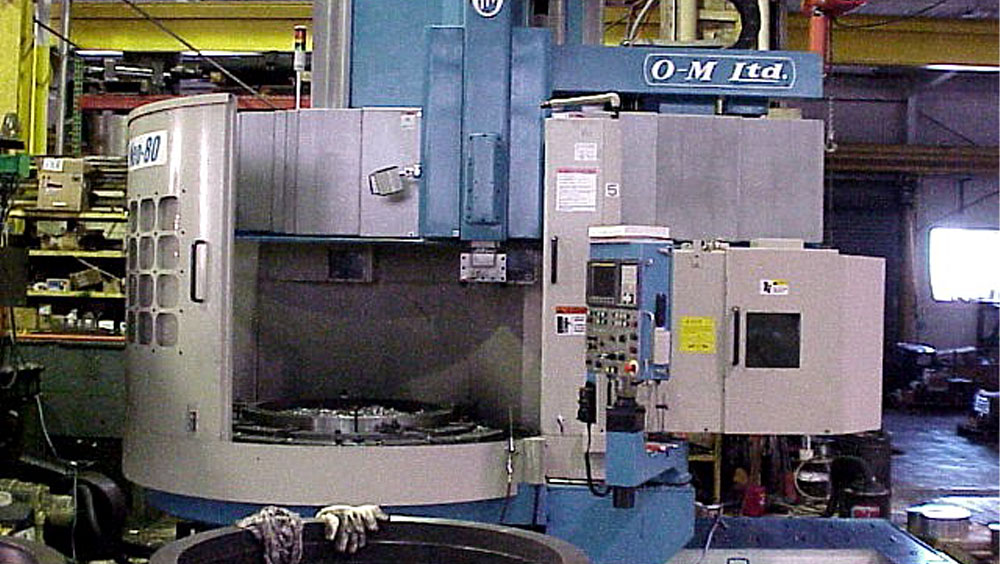

(2) Vertical Lathe - O-M Neo 80 63" Chuck x 59" under rail x 39"Ram Travel
Vertical Lathe - Bullard 46" Chuck x 36" under rail x 30" Ram Travel
Horizontal Numerical Control/Turning
Lathe-Poreba 98" Swing x 450" C-C
Lathe-MicroTurn 62" Swing x 240" C-C
Lathe-Daewoo  26" Swing x 165" C-C
Lathe-Mazak 26" Swing x 84" C-C

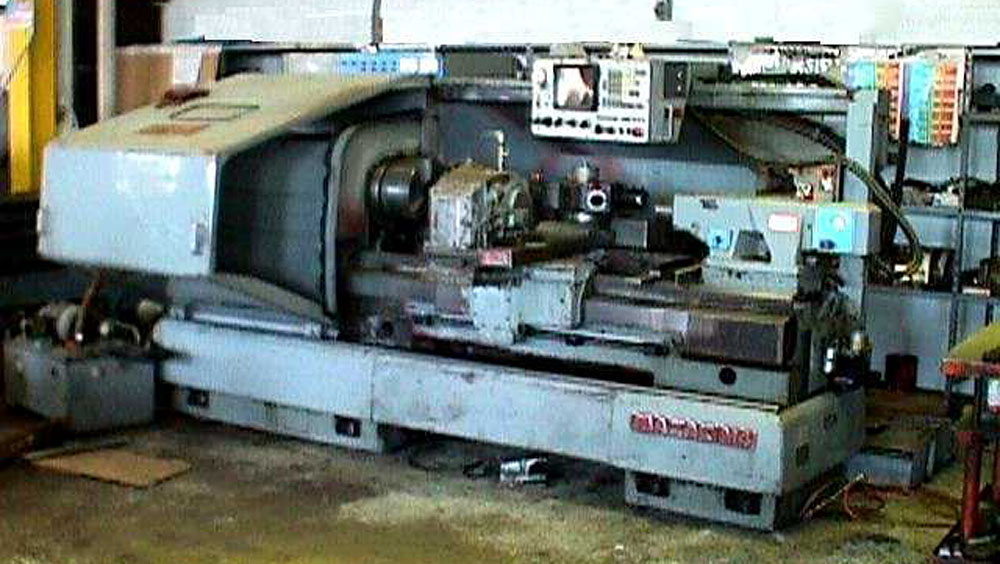

(4) Lathe-Mazak M4 26" Swing x 48" C-C

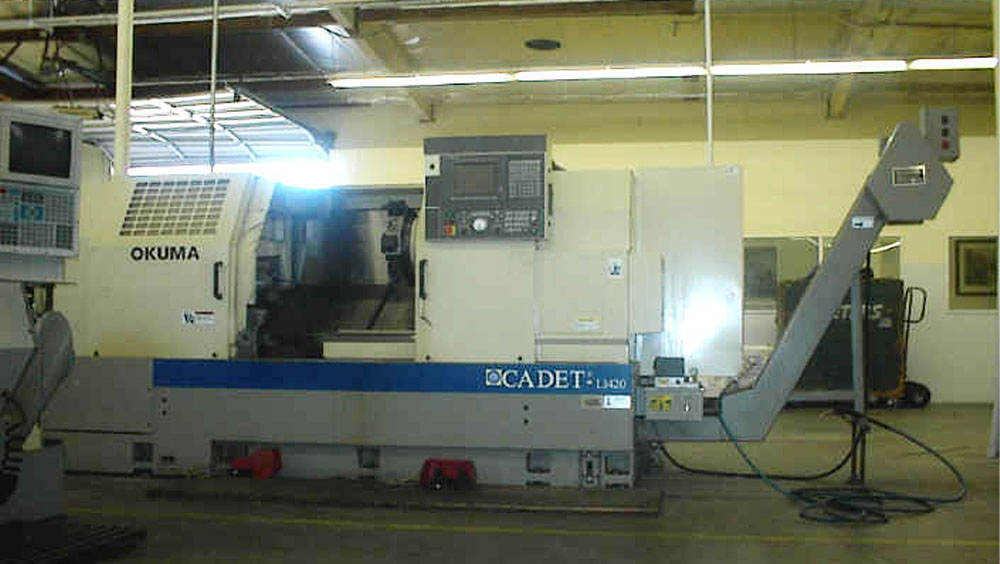

Lathe-Okuma 20" Swing x 50" C-C
Lathe-Okuma 20" Swing x 24" C-C 4 axis with live tooling
Lathe-Simco 19" Swing x 39" C-C
Lathe-Okuma 12" Swing x 19" C-C
Numerical Control/Milling
G&L 6" Floor Type Horizontal Bar 288" x 115" travels, 96" x 72" x 44000lb Rotary table with 36" in-feed travel
PNA 4" Table Type Horizontal Bar 87" x 63" travels, 60" x 48" x 12000lb Rotary table with 60" in-feed travel
Chevalier 80" x 160" x 49" Bridge Mill with 40 tool toolchanger
G&L 6" Floor Type Horizontal Bar 156" x 75"

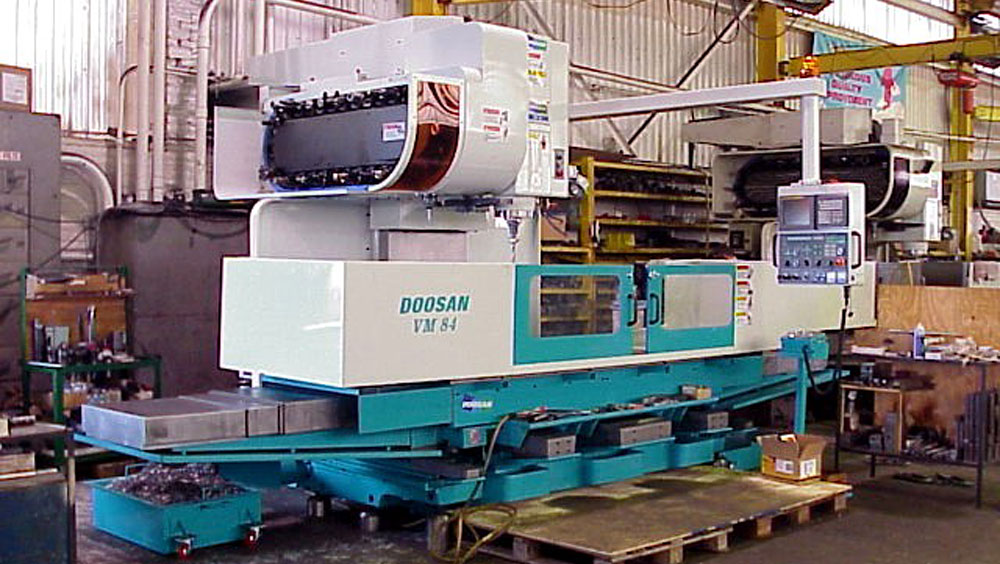

Doosan VM84 Vertical 78" x 33" x 32" Travel

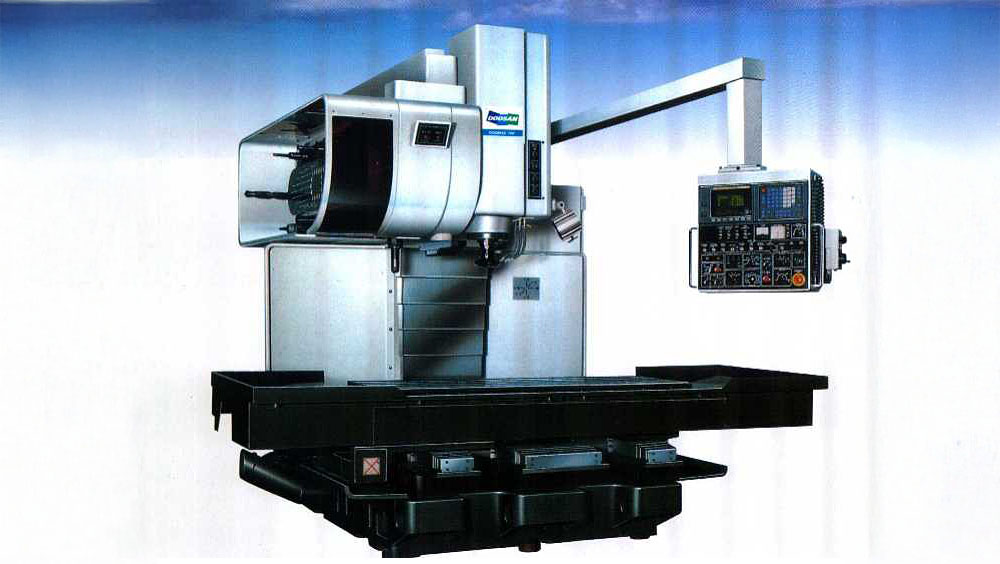

Doosan VM80 Vertical 78" x 33" x 32" Travel
Union 4" Table Type Bar with 62" x 50" Travel
Okuma MC-50VA Vertical 42" x 20" x 22" Travels
Bridgeport Vertical 30" x 16" x16" Travel
Engine Lathe
Poreba 75" Swing x 240" C-C
Denham 75" Swing x 228" C-C
LeBlond 64" Swing x 240" C-C
(4) LeBlond 52" Swing x up to 384" C-C
LeBlond 48" Swing x 144" C-C
Poreba 40" Swing x 320" C-C
Niles 39" Swing x 192" C-C
Monarch 37" Swing x 144" C-C
DeMoor 32" Swing x 144" C-C
(2) LeBlond 30" Swing x 132" C-C
LeBlond 30" Swing x 72" C-C
TOS 26" Swing x 165" C-C
Pacemaker 26" Swing x 156" C-C
Tarnow 21" Swing x 80" C-C
Pratt&Whitney 13" Swing x 54" C-C
Vertical Lathes
King 72" Chuck twin heads
Bullard 46" Chuck single head with side head
(2) Bullard 36" Chuck single head with side head
Milling Machines
(3) Bridgeport Vertical
Grinding
Farrel 62" x 360" Roll Grinder w/Crowning
Waldrich Siegan 39" x 324" Roll Grinder w/Crowning
Johansson 36" x 160" Cylindrical Grinder
Blanchard 30" Rotary Grinder
Jodon 60" x 144" Polishing
Radial Arm Drill
Cincinnati Bickford 6’ Arm
Threading
(2) Landis Single Head 3 ½" Dia.Max
Hydraulic Press
Erie 750 Ton Wheel Press
White 200 Ton Wheel Press
Lake Erie 150 Ton Straightening Press
Welding
Miller MIG up to 450 Amps

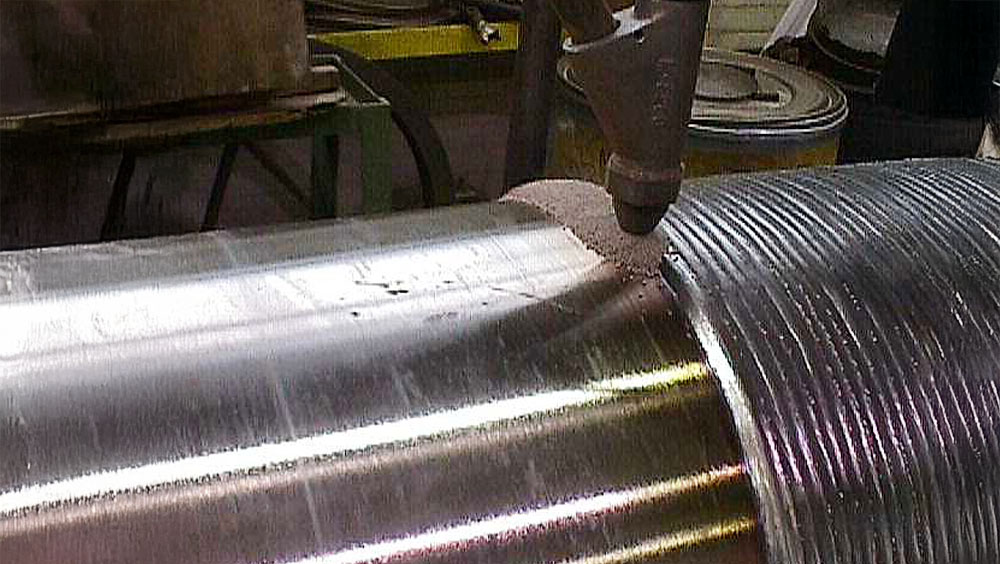

Lincoln 1500 amp-Submerged Arc
Lincoln 1 ¼" Plasma Cutter
Forging/Bending
Ajax 2 ½" Upsetter
Peddinghaus 3" Bender
Di-acro 1" Bender
Saws

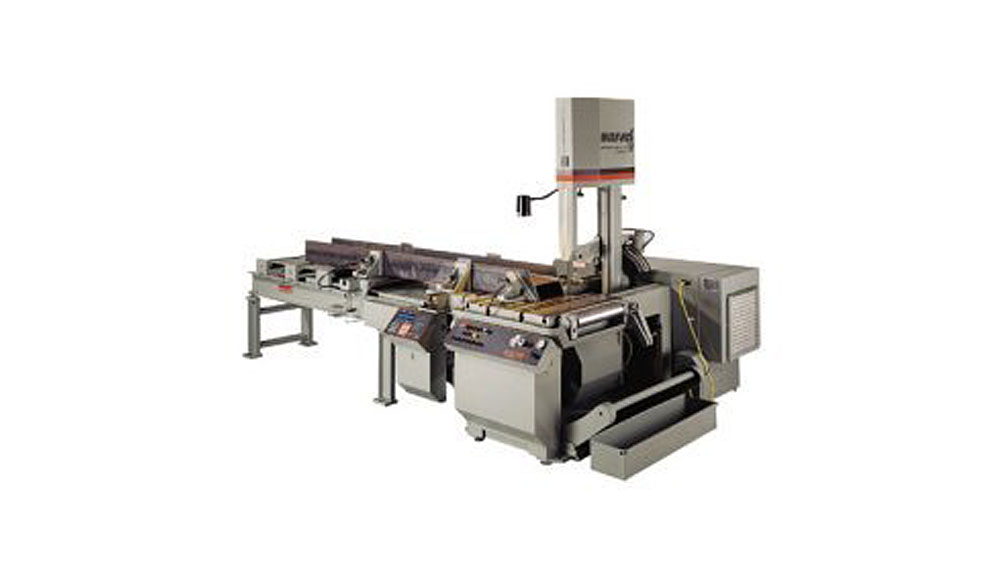

Marvel Series 81APC  18" x 20" with autofeed/tilt
Lifting
P&H 50 Ton/10 Ton Crane in our 42' high bay-32' hook height
(2) P&H 15 Ton in our 32' high bays

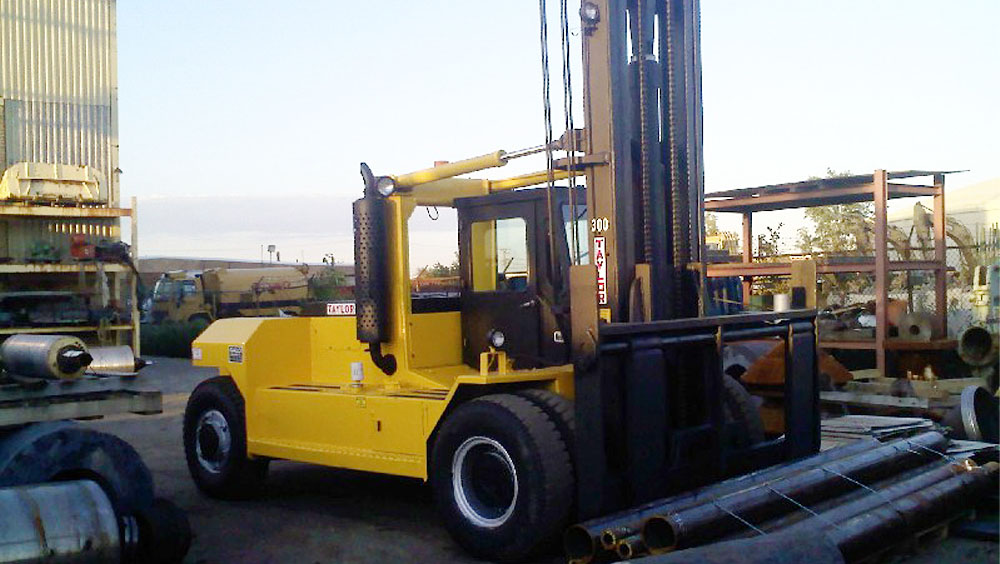

Taylor 40000# @ 36" load center
(4)  Konecranes 10 Ton in our 32' high bays
Manchester 20 Ton in our outside storage area
Jib Cranes (16) Up to 2 ton
Lift trucks (4) up to 18,000 lbs
Trucking
Freightliner T800 45’ Trailer, Oversize permitted for Illinois, 12' wide x 14'-6" high
Ford F550 Stake Bed
