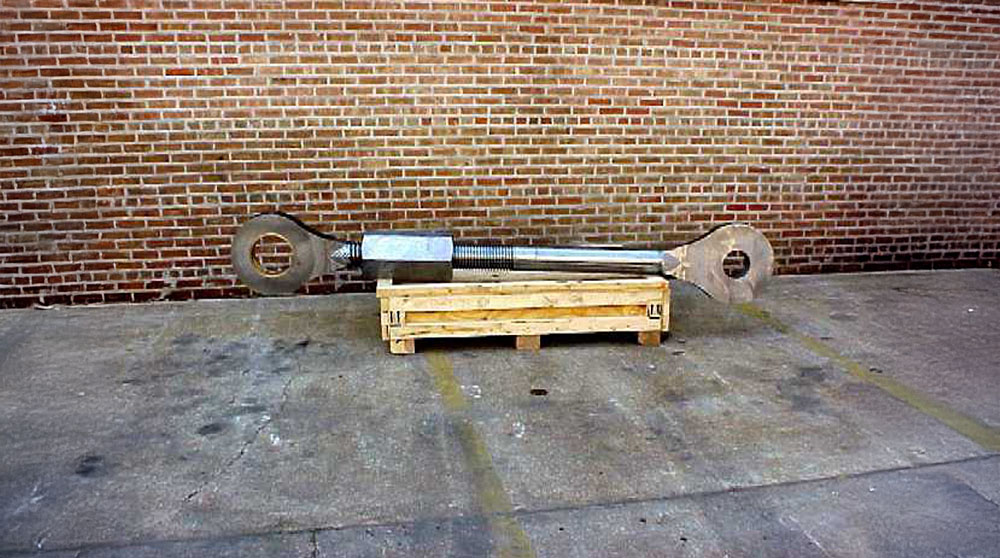

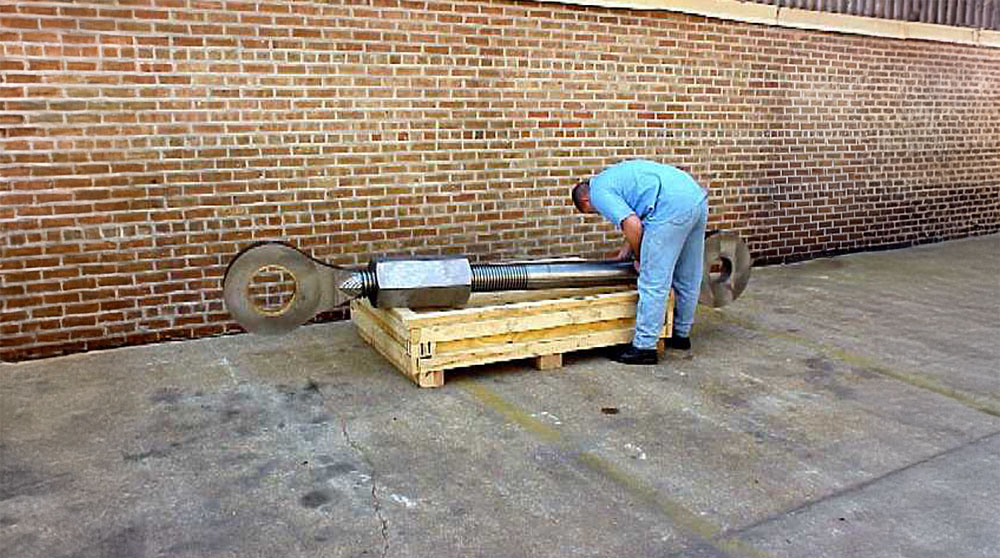

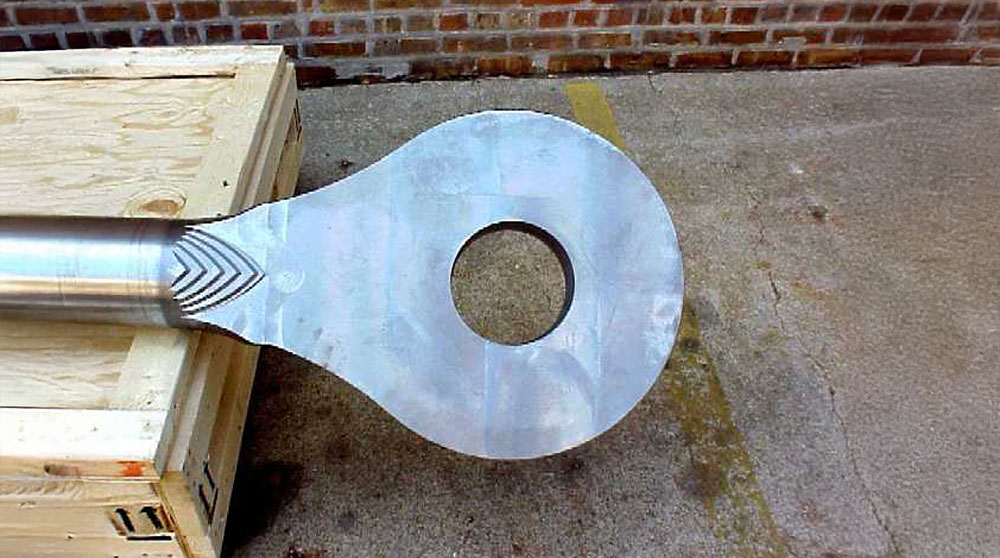

The above picture shows an eyebolt assembly that we had worked on
The material came to JK Manufacturing as a forged piece of carbon steel
The overall length of the assembly is 9' from eye center to eye center.

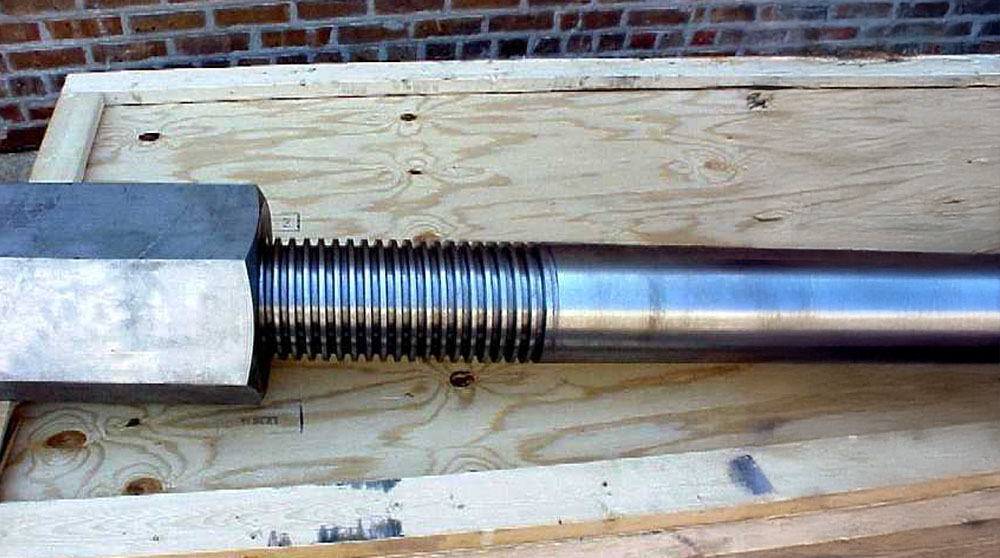

The bolts diameter is 6 1/2" and have 1 and 1 1/3 ACME threads.
Click on a picture below for better detail. A new window will pop up. Close window to return to this page
